| 品牌：南芯 | 型号：SC8329 | 类型：其他IC |
| 封装：QFN-15 | 批号：2021+、 2022+ | 应用领域：照明电子 |

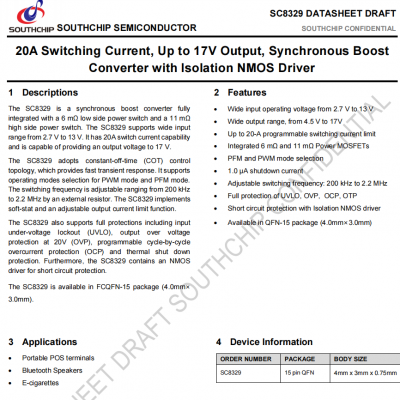

Features
? Wide input operating voltage from 2.7 V to 13 V
? Wide output range, from 4.5 V to 17V
? Up to 20-A programmable switching current limit
? Integrated 6 mΩ and 11 mΩ Power MOSFETs
? PFM and PWM mode selection
? 1.0 ?A shutdown current
? Adjustable switching frequency: 200 kHz to 2.2 MHz
? Full protection of UVLO, OVP, OCP, OTP
? Short circuit protection with ***lation NMOS driver
? Available in QFN-15 package (4.0mm×3.0mm)
